Convey, transport and dose with precision and without losses!
Our custom-built screws are gentle on your products during the production process.

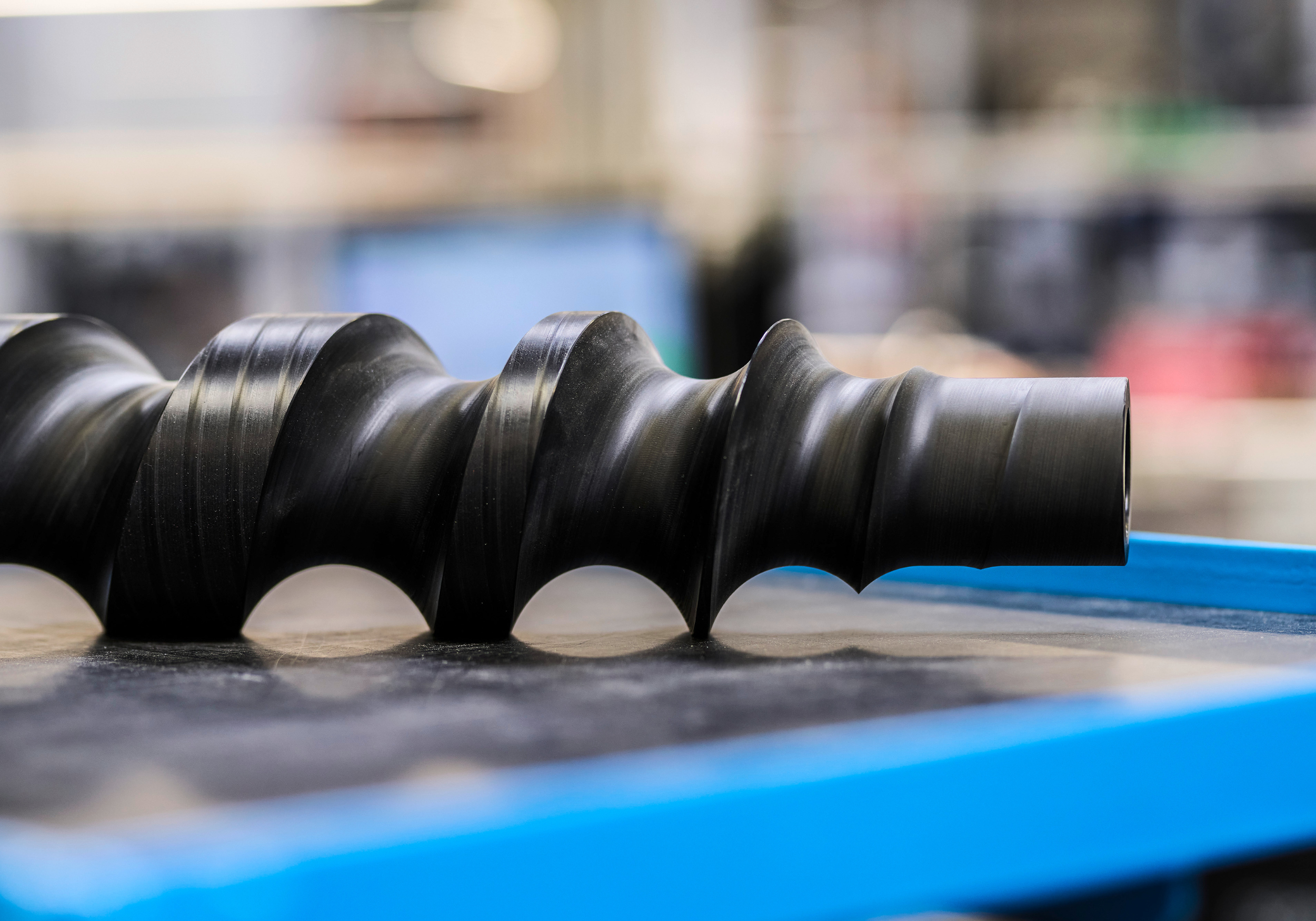

Murtfeldt drive screws and conveying screws
We design custom drive screws, conveying screws, dosing screws, and transport screws – cost-effectively and tailored to your specific requirements.
Custom-made transport screws and conveying screws from Murtfeldt typify the wide range of design components that we manufacture specifically to meet the needs of their users. These finished parts are of the highest quality, regardless of whether the components are produced by milling plastics, i.e. machining, or by 3D printing. Our machining of plastics is optimised across all manufacturing processes.
Murtfeldt offers a broad range of custom-made plastic conveying screws including separation screws, grouping screws, 1-in-2 strand screws, 2-in-1 strand screws, dosing and conveying screws, turning screws, and turning and grouping screws. They all transport goods consistently, quickly and carefully.
We will work with you to create the perfect conveying screw, ensuring it is precisely tailored to your needs!
Already have specific ideas? Then please use the design questionnaire and send us your information. Our experienced Application Technology team will get back to you as soon as possible.
Have questions? We are happy to advise you – free of charge and without obligation – on the design and material of your plastic screw. Use our call-back service or arrange a meeting with us, at your premises or ours.
Possible uses for Murtfeldt conveying screws
There are many different possible uses for screws. They are an integral part of the production process in near to all areas where individual goods are produced, processed and packaged. Just like product turners, they play a key role in emptying, cleaning, filling, measuring and testing, printing and many other production steps.
Take a look at our conveying, dosing and transport screw systems in action here:
Mit dem Aufruf des Videos erklären Sie sich einverstanden, dass Daten über ihren Besuch an Youtube übermittelt werden und dass Sie den Datenschutzhinweis gelesen haben.
Mit dem Aufruf des Videos erklären Sie sich einverstanden, dass Daten über ihren Besuch an Youtube übermittelt werden und dass Sie den Datenschutzhinweis gelesen haben.
Mit dem Aufruf des Videos erklären Sie sich einverstanden, dass Daten über ihren Besuch an Youtube übermittelt werden und dass Sie den Datenschutzhinweis gelesen haben.
Mit dem Aufruf des Videos erklären Sie sich einverstanden, dass Daten über ihren Besuch an Youtube übermittelt werden und dass Sie den Datenschutzhinweis gelesen haben.
Everything is possible!
Murtfeldt design engineers are happy to advise you and, on request, design a conveying screw to meet your specifications.
How a Murtfeldt conveying screw is made
At Murtfeldt Kunststoffe, we manufacture our conveying screws by machining. The use of different milling machines makes it possible to accommodate the specific requirements of screws. Thanks to our six-axis machining centre, for example, we are one of the few manufacturers capable of producing screws up to 2.50 metres in length! The milling machine with traverse paths x = 4000 mm, Y = 800 mm and Z = 800 mm also has a special axis setup for the production of parts clamped on both sides up to a diameter of 400 mm with a length of up to 2500 mm. We also have a special configuration for the production of very complex screws. This system is connected to specialised CAM software, which is necessary for the production of custom screws. In addition, a vacuum plate makes it possible to machine long, flat components quickly and accurately.
Take advantage of this opportunity to be among the first to utilise extra-long, custom-designed and precision-produced screws!
Your advantages at a glance
High-quality plastics
Manufacture of components made from PE, PA, POM, PEEK and PET (PETP).
Made to individual requirements
Production according to drawings or samples.
Small quantities
We start production at 1 piece – cost-efficient and fast.
State-of-the-art production facilities
Ultra-modern machines for diverse machining options.
Advantages of Murtfeldt screws
- Virtually no operating noise
- Lighter weight
- Easy to clean
- Minimal centrifugal forces
- High impact and abrasion resistance
- High impact strength
- Outstanding sliding behaviour
- Optimal surface quality for protecting products
- Long service life 100% reproducible
Advantages of the Murtfeldt plastics used
- Excellent slide properties result in the lowest possible dynamic pressure
- High wear resistance reduces the need for maintenance and new investments
- Compliance with EU and FDA food regulations on request
- Excellent surface quality due to machine production
- Stainless steel connecting elements to meet hygiene requirements
Design questionnaire
We are happy to advise you – free of charge and without obligation
Experience has shown us that questions often arise in relation to particular areas, and this includes conveying screw design. To ensure that we answer these questions in the best possible way and provide you with quality advice, we need your technical information. To this end, we have created a design questionnaire that outlines the information we need.
Please download the questionnaire and send it to us via email with as much information as possible. This allows us to decide directly on the right choice without further queries by phone and to get back to you as quickly as we can.
Conveying screw questionnaire
Please note: You will need a PDF reader such as the free Adobe® Acrobat® Reader to view this document.
How we handle your data
We process the personal data supplied by you only for the purpose of providing the design service that you have requested. The data you enter will be stored by us and forwarded internally to the relevant employees for this purpose. We do not disclose your data to third parties as a matter of principle.
More information on data protection within our company can be found in our privacy policy
Further application examples
Mit dem Aufruf des Videos erklären Sie sich einverstanden, dass Daten über ihren Besuch an Youtube übermittelt werden und dass Sie den Datenschutzhinweis gelesen haben.
Mit dem Aufruf des Videos erklären Sie sich einverstanden, dass Daten über ihren Besuch an Youtube übermittelt werden und dass Sie den Datenschutzhinweis gelesen haben.
Mit dem Aufruf des Videos erklären Sie sich einverstanden, dass Daten über ihren Besuch an Youtube übermittelt werden und dass Sie den Datenschutzhinweis gelesen haben.
Have questions?
I’m happy to help you with any questions you have about our conveying screws.
