Note: The product shown is for illustration purposes only.
Product number
231010011
CAD
Show in 3D
The belt guide Type KR was specifically developed for V-belts and ensures precise and material-friendly guidance – both for the guide rail and the belt itself. It is manufactured from the proven PE material Original "S"® black and is compatible with various V-belt types.
Available in a standard length of 2000 mm or as a custom-cut length, it is also suitable for use in explosive environments.

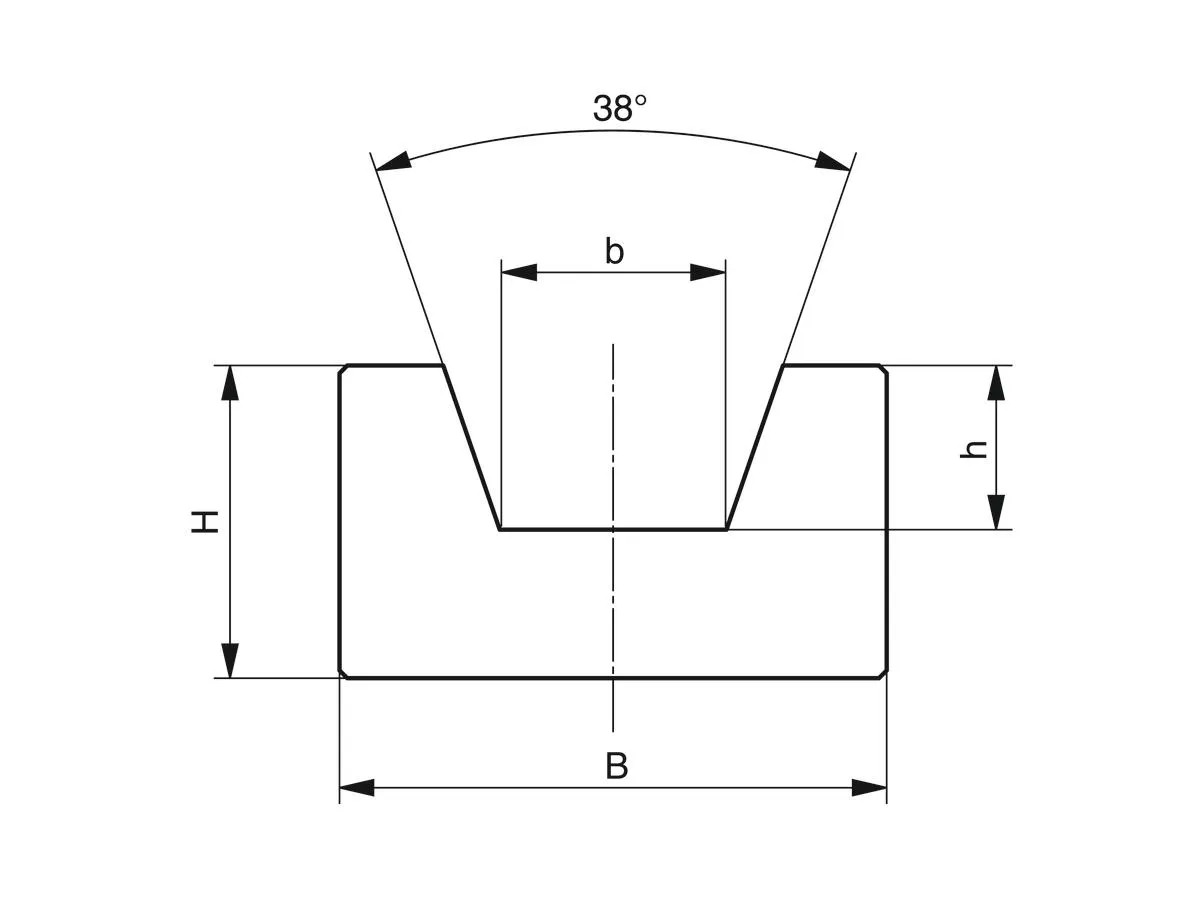

| Material | Original "S"® black AST |
| H (mm) | 25.0 |
| B1 (mm) | 40.0 |
| weight (kg) | 1.4 |
| b (mm) | 16.5 |
| h (mm) | 12.0 |
Belt guide Type KR
Compatible Belt
Length (mm)
quick_reorder Ready to ship in: 1 working day
Show prices & order or request a quote?
Log in now to order directly or secure individual offers.
Product number
231010011
CAD
Show in 3D
The belt guide Type KR was specifically developed for V-belts and ensures precise and material-friendly guidance – both for the guide rail and the belt itself. It is manufactured from the proven PE material Original "S"® black and is compatible with various V-belt types.
Available in a standard length of 2000 mm or as a custom-cut length, it is also suitable for use in explosive environments.
| Material | Original "S"® black AST |
| H (mm) | 25.0 |
| B1 (mm) | 40.0 |
| weight (kg) | 1.4 |
| b (mm) | 16.5 |
| h (mm) | 12.0 |
