CONVEYING
Up to 2.50 m
Whether it's a bottle, can, or cup – we provide carefully engineered solutions from a single source!
Our application engineering team specializes in complex solutions and provides comprehensive support. You give us your product to be conveyed – we take care of the rest.
*Book a non-binding & free consultation with our material and application experts to discuss your individual challenges.
Applications of Feed Screws
The applications of feed screws are diverse. In nearly all areas where unit goods are produced, processed, and packaged, they are an essential component of the production process. Just like product turners, feed screws play a key role in tasks such as emptying, cleaning, filling, measuring and testing, printing, and many other processing steps.
Separation Screw
A varying number of products can be separated for further processing. The individual spacing enables optimal downstream gripping.

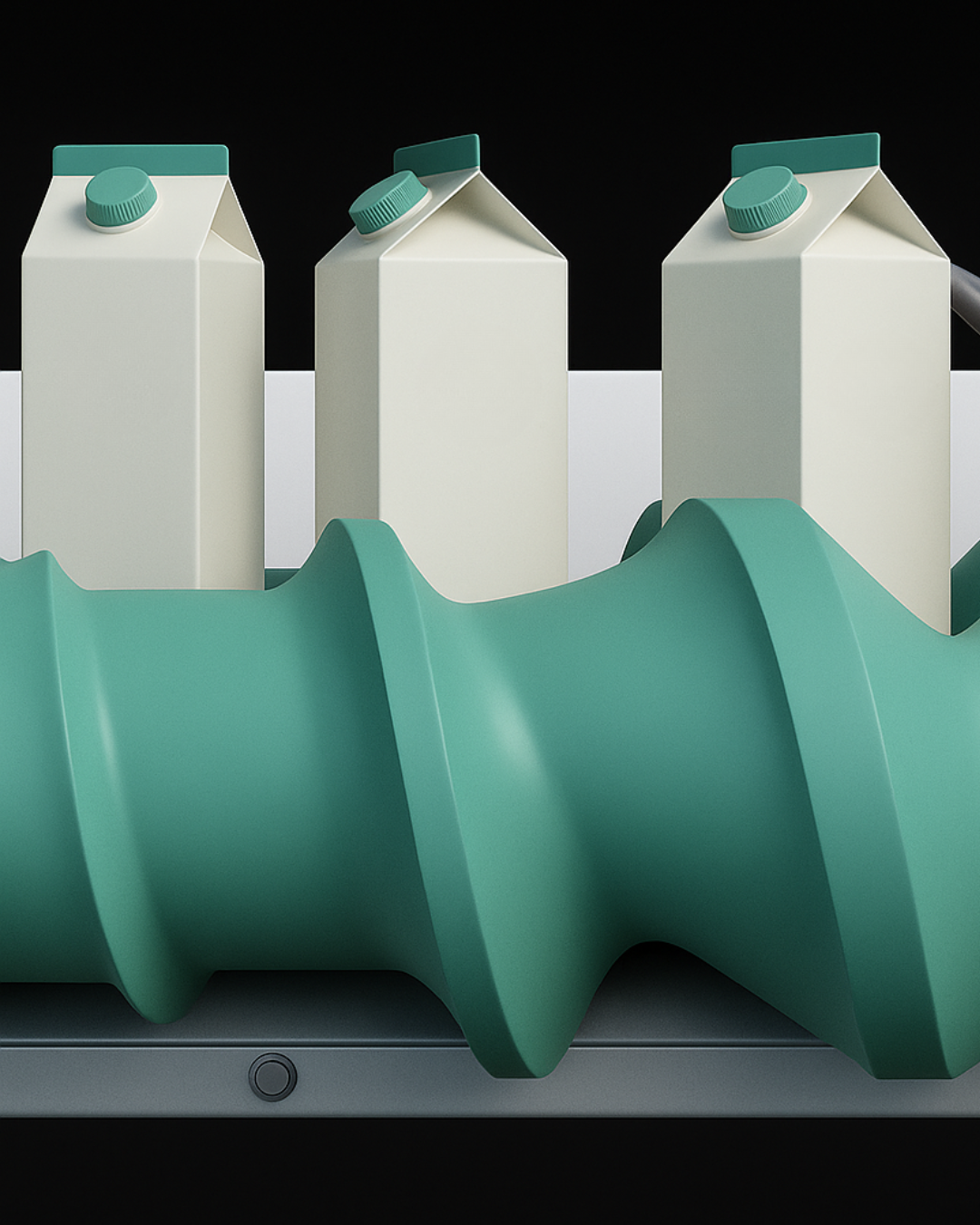

Turn Screw
The MURTFELDT turn screw rotates the product into the desired position for further processing and protects sensitive products.

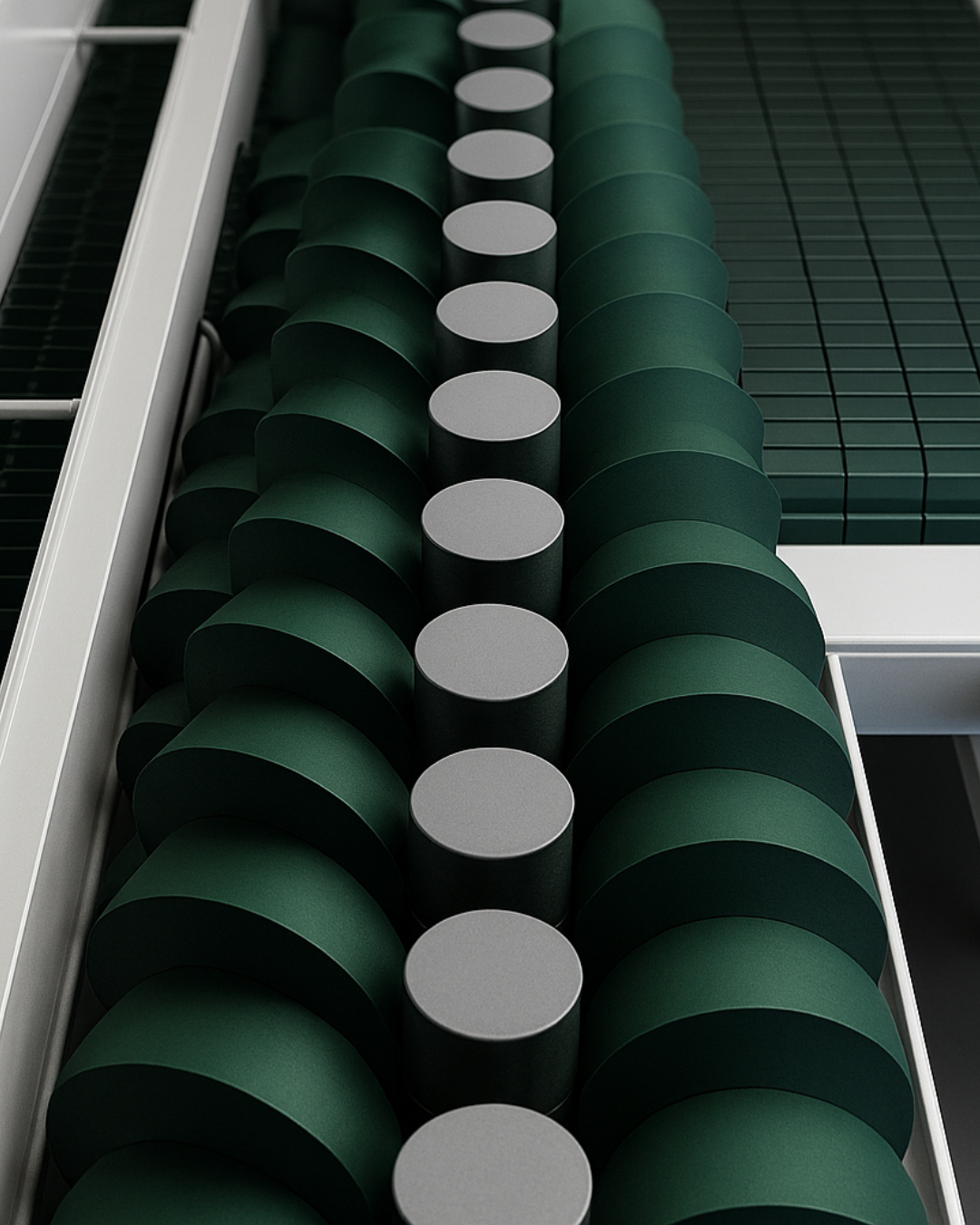

2-in-1 Strand Screw
The double screw evenly combines products from two strands into one. The distance is individually adjustable.

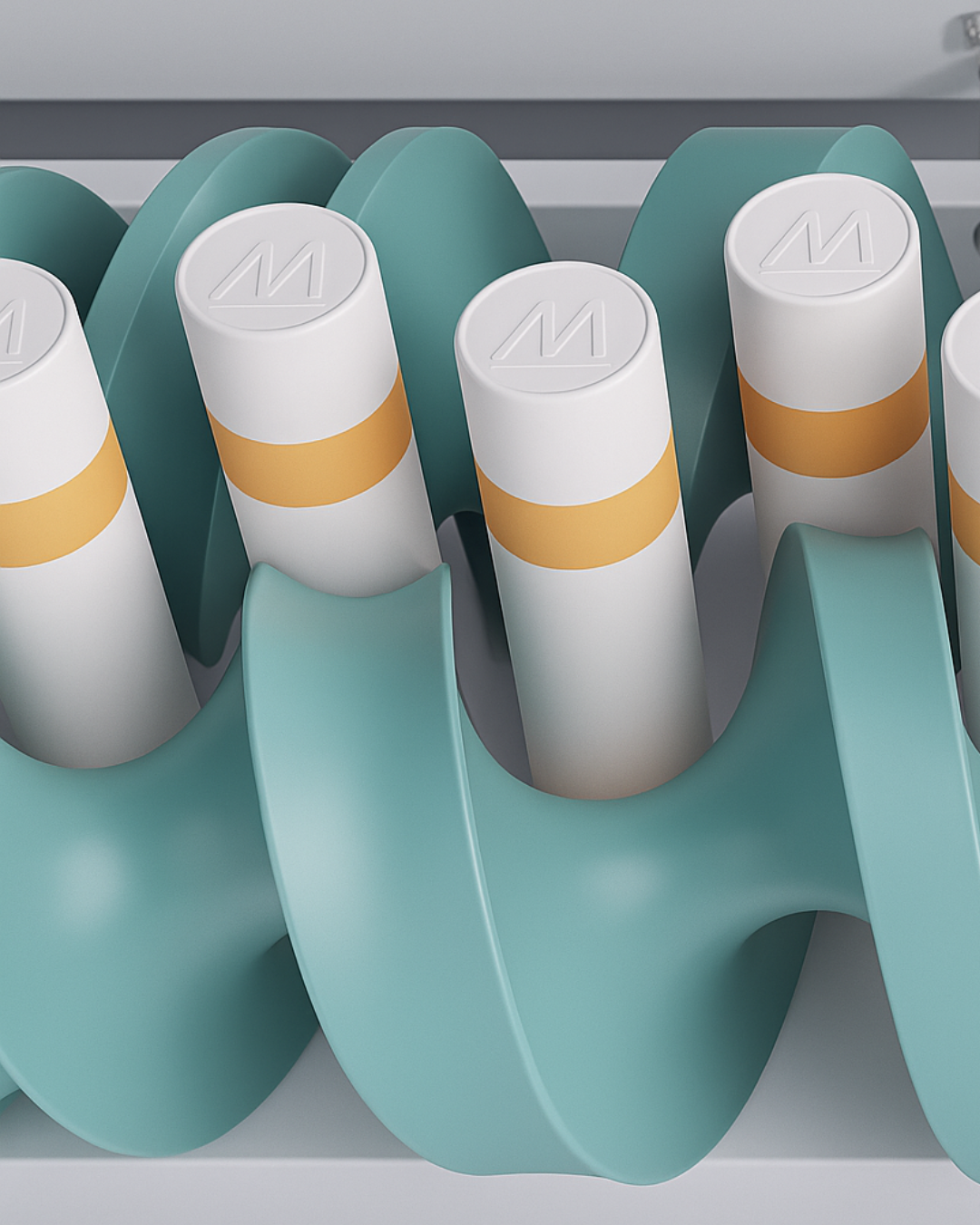

1-to-2 Strand Screw
The double screw evenly distributes products from one strand into two, and can be easily integrated into the production process.

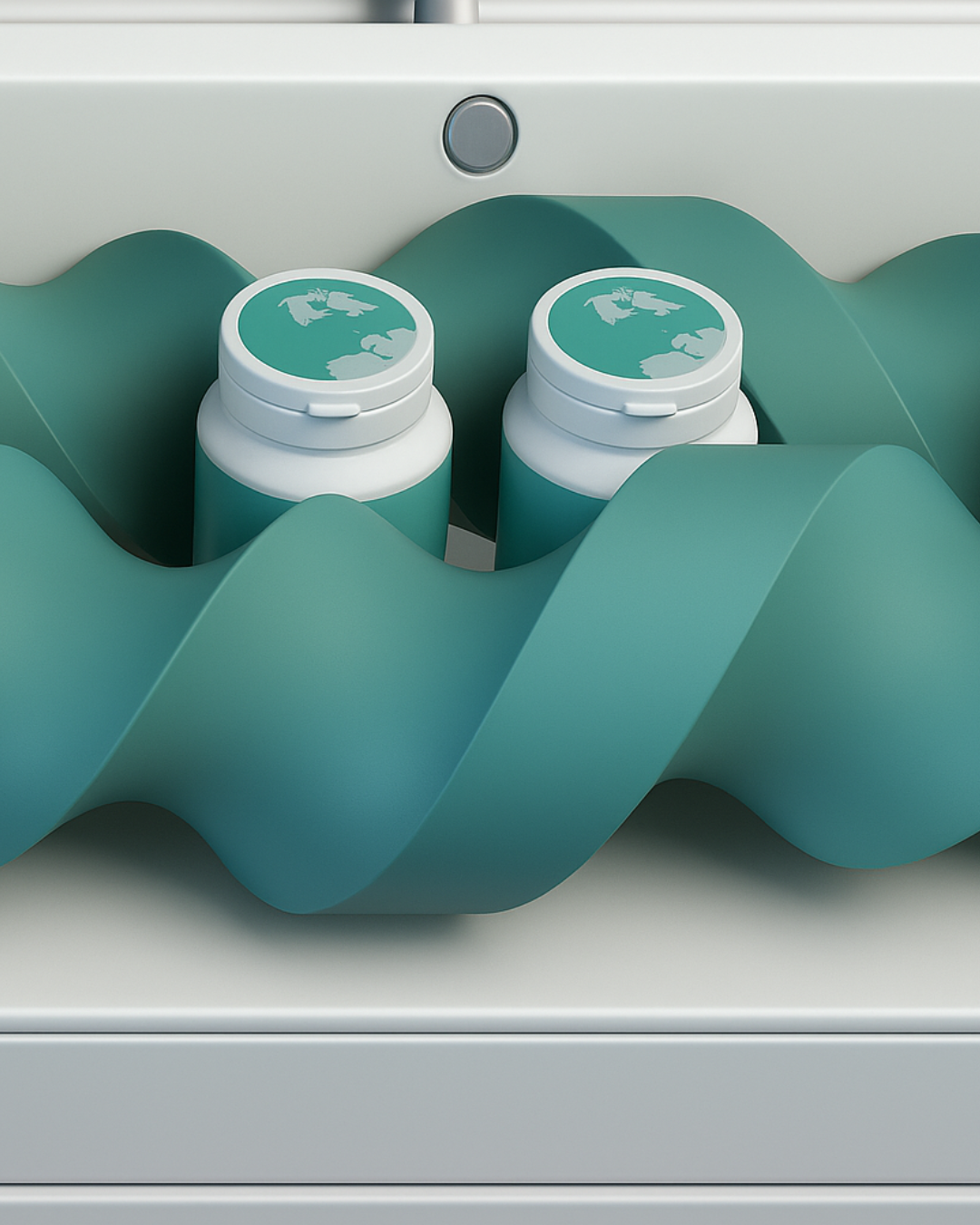

Grouping Screw
A varying number of products can be grouped for further processing. The adjustable distance allows for packaging in appropriate units.

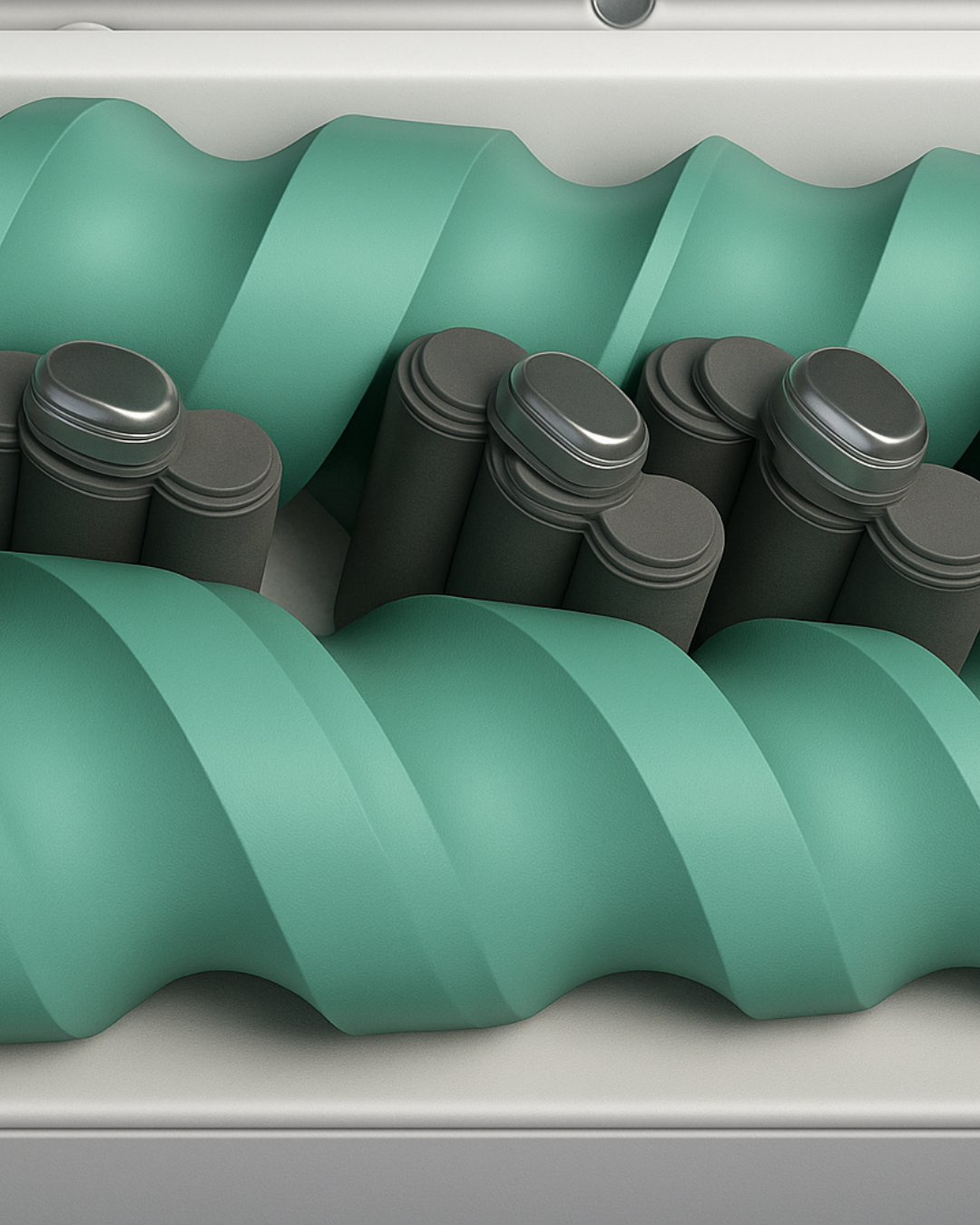

Turning Grouping Screw
The turning grouping screw rotates the products, groups them, and spaces them at a defined distance. Various groupings are possible.
Our Material Selection
The material screws can be made from a wide range of materials. Depending on the application, different requirements are placed on the base material, which we can meet with our variety of high-quality materials.
PE Materials
Our PE materials, such as our Original S® green, are frequently used for conveying screws due to their excellent sliding properties. We offer PE-UHMW in many colors and with a variety of special properties, including food compliance accourding to EU and FDA, antimicrobial properties, and chemical resistance.
POM Materials
In the medical and pharmaceutical industries, our material Murytal® C black with FoodSafe option based on POM-C is particularly popular. It features a fine crystalline structure combined with a high tensile strength, offering excellent resilience, as well as very low moisture absorption. In its blue color, it is also highly suitable for use in the food industry.
PA6 C Materials
In the beverage industry, for example, our Murylon® 6 cast material with FoodSafe option is suitable, as it has very low internal stress.
This makes components resistant to impacts in high-stress areas and provides good fatigue and impact resistance.
The material is available in various grades.
DOSING SCREW
#APPLICATIONEXAMPLE
The screw for dosing bulk materials. The material Original S® natural [FS]® offers excellent anti-stick properties and optimal cleaning capabilities due to its seamless construction – without the need for extra coatings. This allows for precise dosing of small bulk goods without loss or contamination in the bulk material industry.
Screw with CFRP Tube
#APPLICATIONEXAMPLE
The hybrid concept, which replaces conventional metal reinforcements with a carbon fiber-reinforced version, allows for an increase in stiffness while achieving weight savings of up to 78%. The result is improved run-out and optimized operational efficiency.

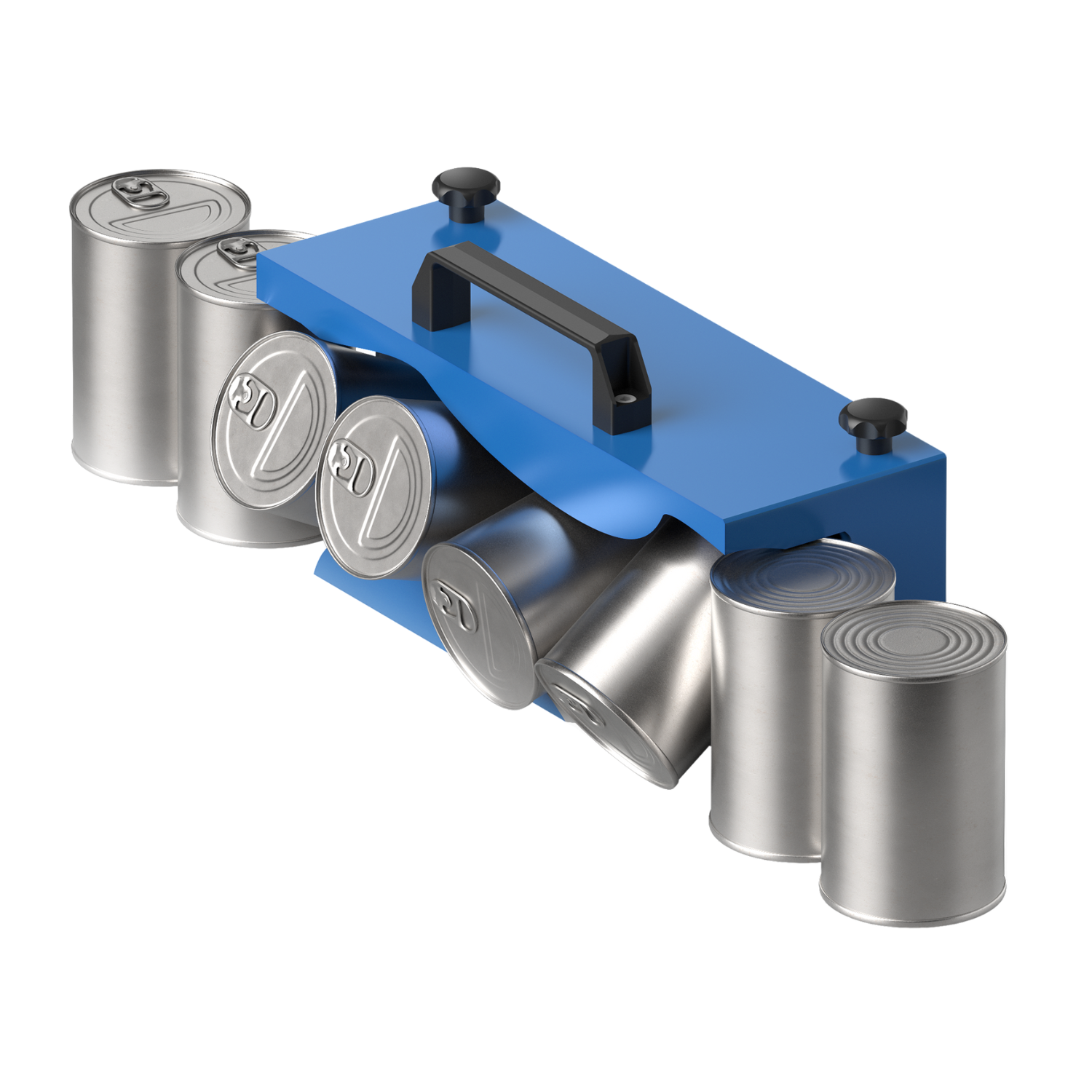

Product Turner
#APPLICATIONEXAMPLE
If products need to be turned without an additional drive, we recommend using a MURTFELDT product turner. It can be easily integrated into existing conveyor systems and can turn a wide variety of products at any angle.
TECHNICAL INFORMATION ABOUT OUR FEED SCREWS
Do you have questions about our screw conveyors? We are here to help you.
Conveyor Screw Solutions for Precise Product Handling
A custom-designed conveyor screw ensures precise product transport, spacing, grouping, and dosing in modern production environments. MURTFELDT develops every conveyor screw according to specific application requirements, offering solutions ranging from spacing and grouping screws to dosing and turning screws. This enables products to be conveyed smoothly, efficiently, and with a high level of process reliability.
Each conveyor screw is individually engineered for the product and application. Whether handling bottles, cans, cups, or other packaged goods, MURTFELDT combines advanced CNC manufacturing with application expertise to create high-quality solutions with excellent sliding properties, low operating noise, and long service life.
With a broad range of high-performance materials and decades of experience, MURTFELDT provides the right conveyor screw for food processing, beverage production, packaging lines, and other industrial applications. The result is reliable product handling, optimized production processes, and maximum flexibility for demanding conveying tasks.
