Product number

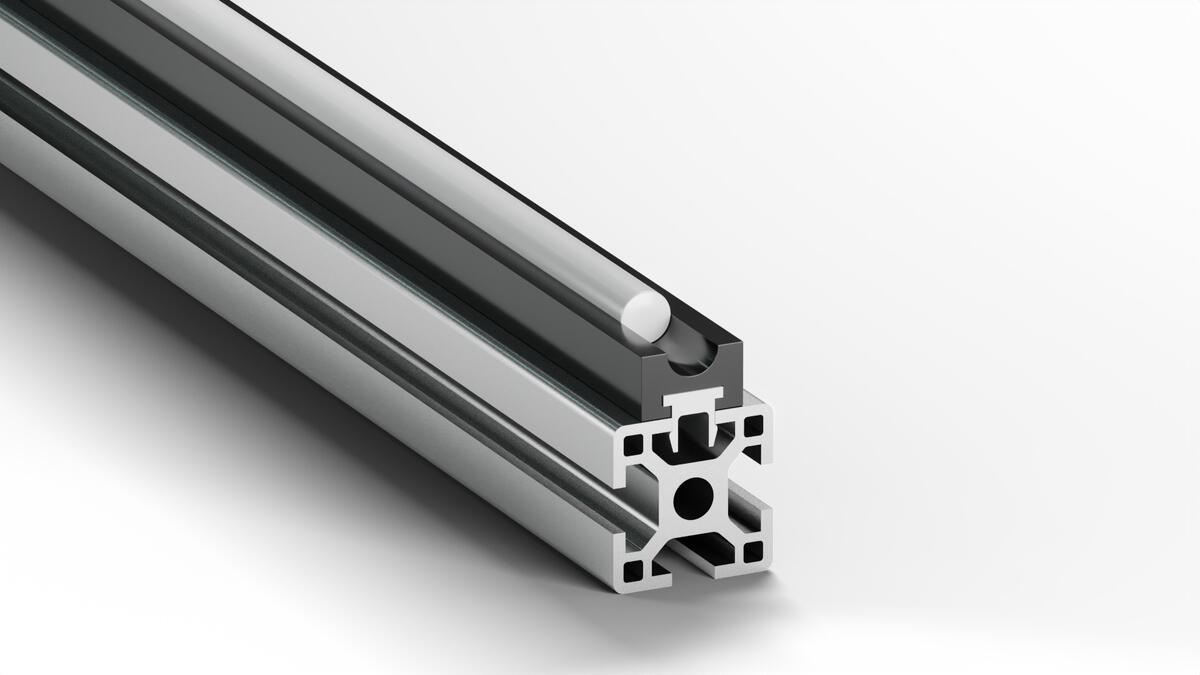

Type RR guides round belts precisely and in a material-friendly manner. It is made of UHMW-PE Original "S"Ā® black and is compatible with a wide range of aluminum profile systems. You can obtain it in our standard length of 2000 mm or as a custom cut-to-length option.
For quick and easy installation, the guide comes with 5 SNAPs per meter.

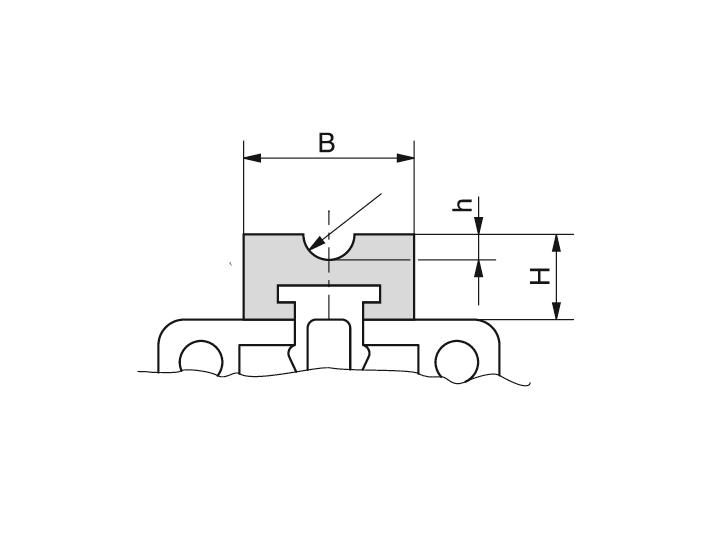

| H (mm) | 10.0 |
| B1 (mm) | 20.0 |
| r (mm) | 3.0 |
| Material | Original "S"Ā® black AST |
| h (mm) | 3.0 |
| Suitable SNAP | SNAP Type S1 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S2 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S3 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S4 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S5 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S6 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S7 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S8 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S9 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S10 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S11 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S12 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S13 ā Free Add-On (5 pcs/m) |
| Suitable SNAP | SNAP Type S14 ā Free Add-On (5 pcs/m) |
Belt guide Type RR for SNAP-TRICKĀ®
Belt guide rail for round belts
Matching belt
Length (mm)
