Note: The product shown is for illustration purposes only.
Product number
211310037
view_in_ar
CAD
Show in 3D
The material rail reliably guides hinge belt chains, even at high speeds, ensuring consistently precise and stable operation.

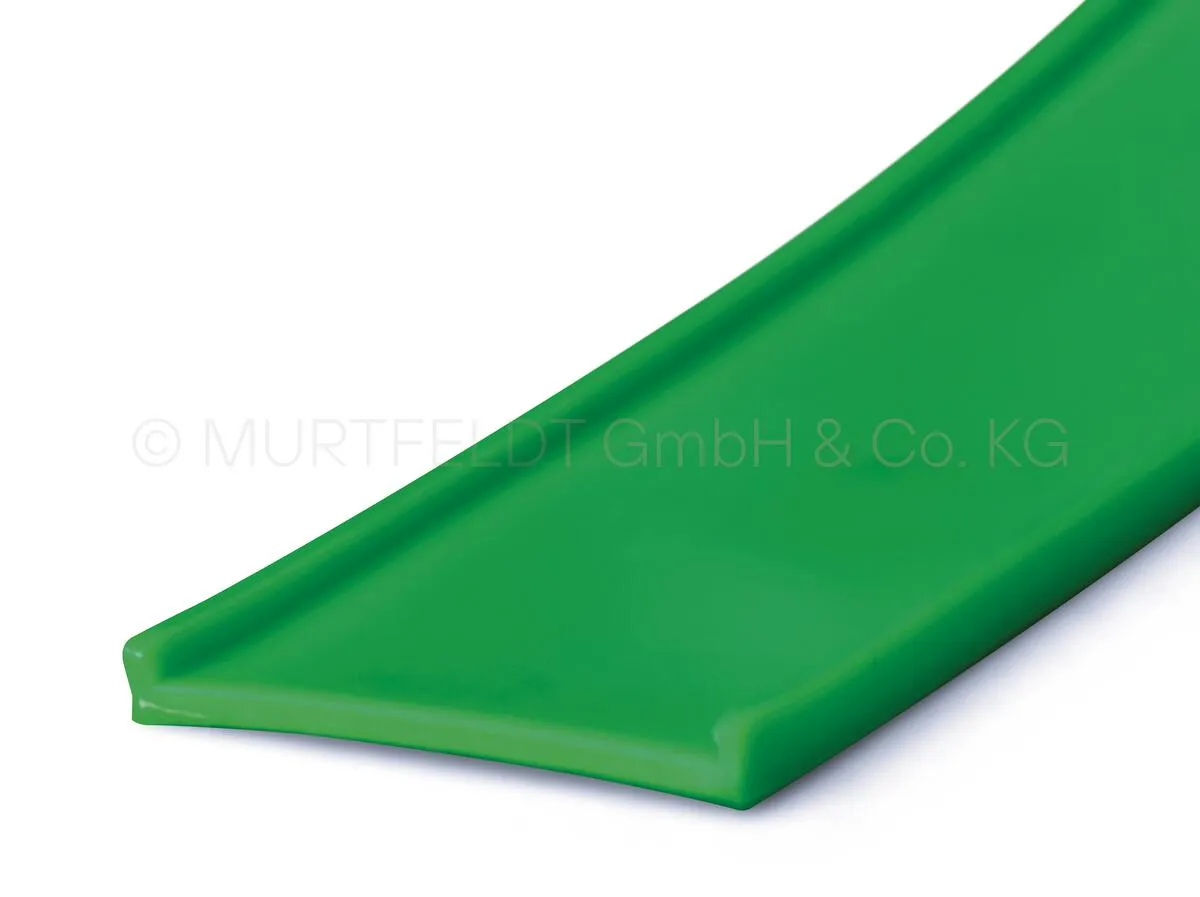

The Type U sliding profile is available as roll stock (36 m).

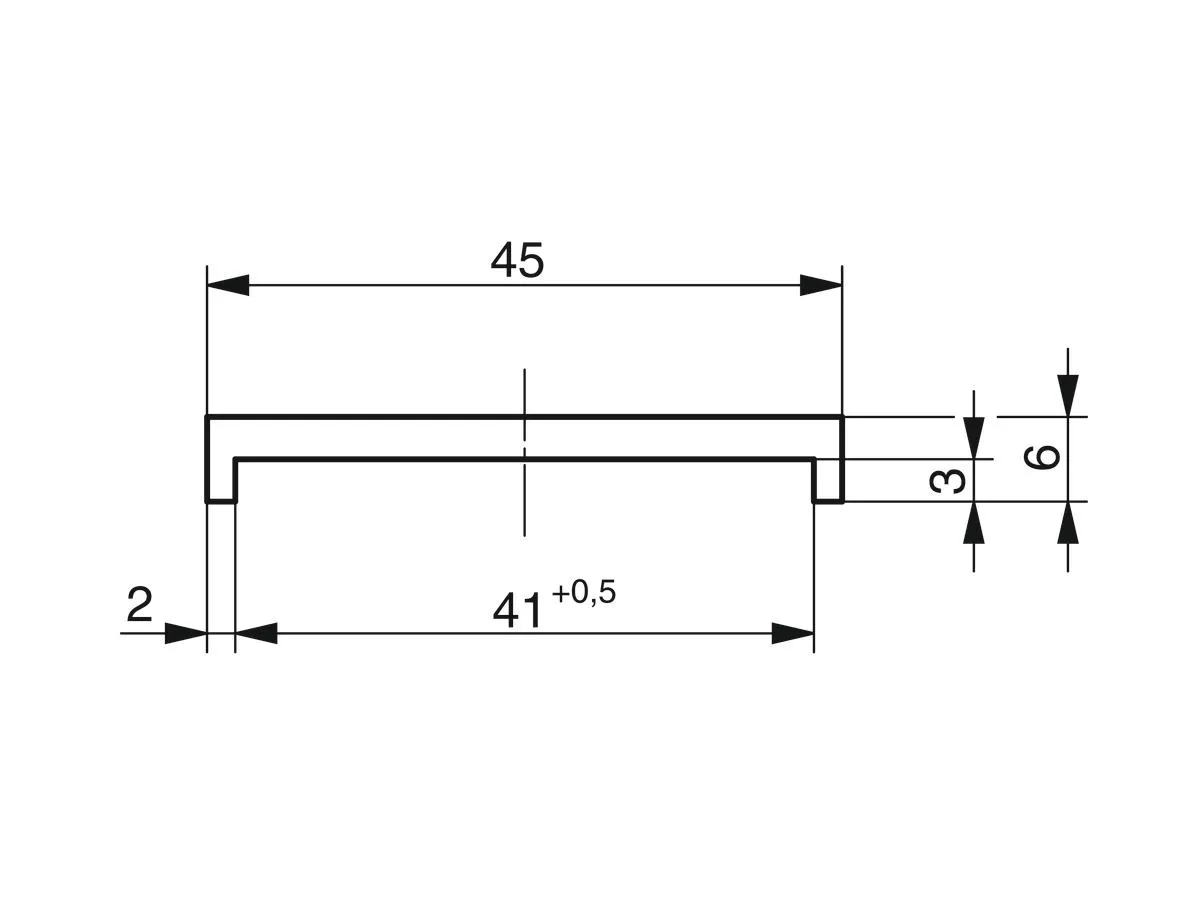

| Type | Slide profile type U |
| H (mm) | 6.0 |
| B1 (mm) | 45.0 |
| Length (mm) | 36000.0 |
| Container | Roll |
| weight (kg) | 5.04 |
| Manufacturing method | gefräst |
Profiles for slat band chains, type U
Sliding guides for guiding slat band chains
Material
quick_reorder Ready to ship in: 1 working day
Show prices & order or request a quote?
Log in now to order directly or secure individual offers.
Product number
211310037
view_in_ar
CAD
Show in 3D
The material rail reliably guides hinge belt chains, even at high speeds, ensuring consistently precise and stable operation.
The Type U sliding profile is available as roll stock (36 m).
| Type | Slide profile type U |
| H (mm) | 6.0 |
| B1 (mm) | 45.0 |
| Length (mm) | 36000.0 |
| Container | Roll |
| weight (kg) | 5.04 |
| Manufacturing method | gefräst |
