Product number
221260005
CAD
Show in 3D

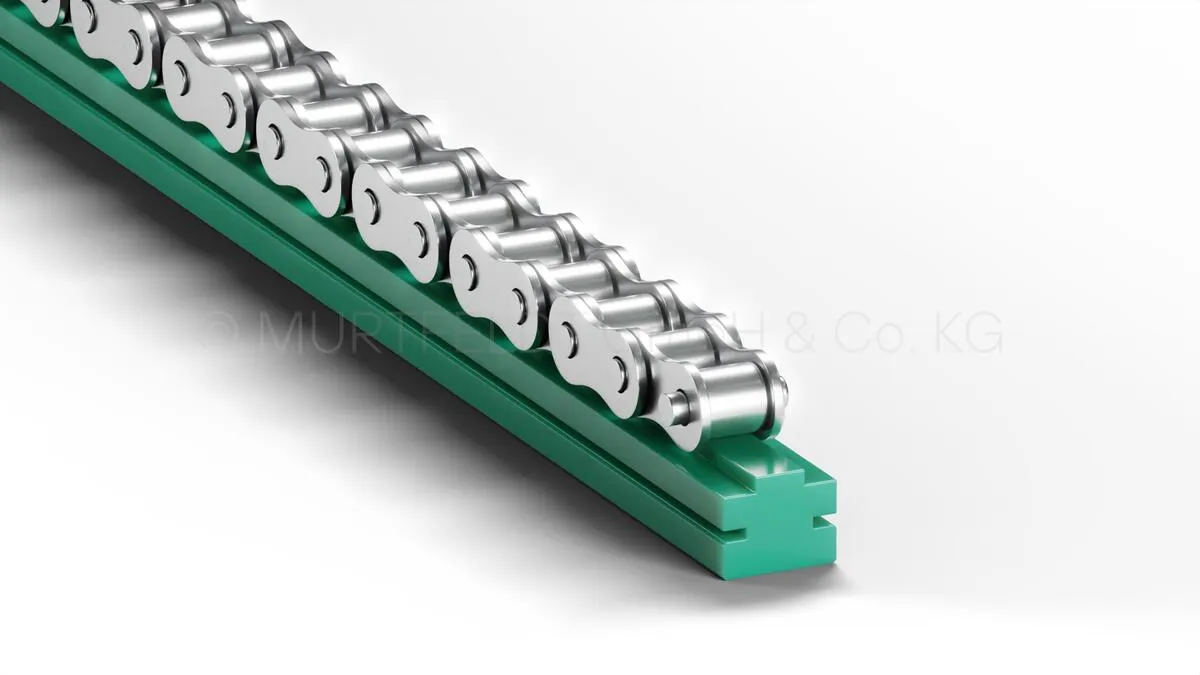

The chain guide rail for simplex chains is made from our Original S® green or our recycled material S® NewCycle® green, which are characterized by precise tolerances in the plastic profile cross-section, as well as optimal performance and durability. They have been specially developed for applications where longevity is crucial.
Reliable: The guide rail is in stock as standard and quickly available.
Customizable: Upon request, we offer intermediate dimensions and alternative materials.

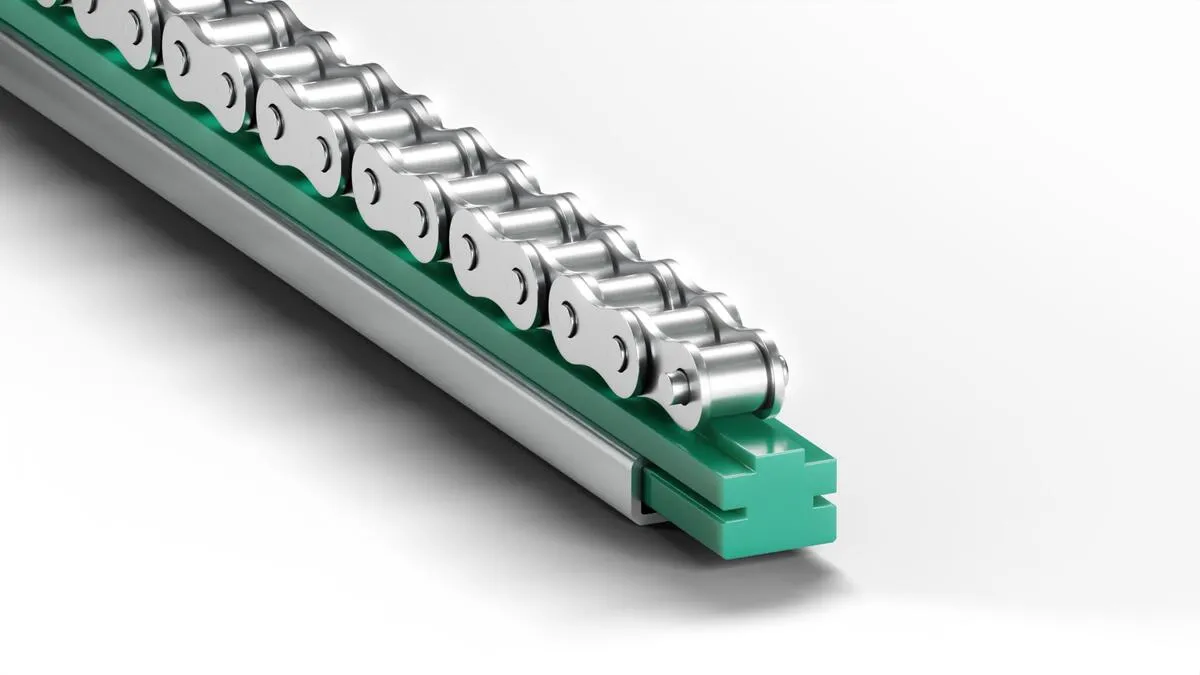

You can find suitable steel C profiles at the bottom of this page.
| Construction type | american |
| weight (kg) | 0.61 |
| Width b (mm) | 14.8 |
| Height h (mm) | 4.7 |
| Suitable C-profile type | C5 |
| Hc (mm) | 20.0 |

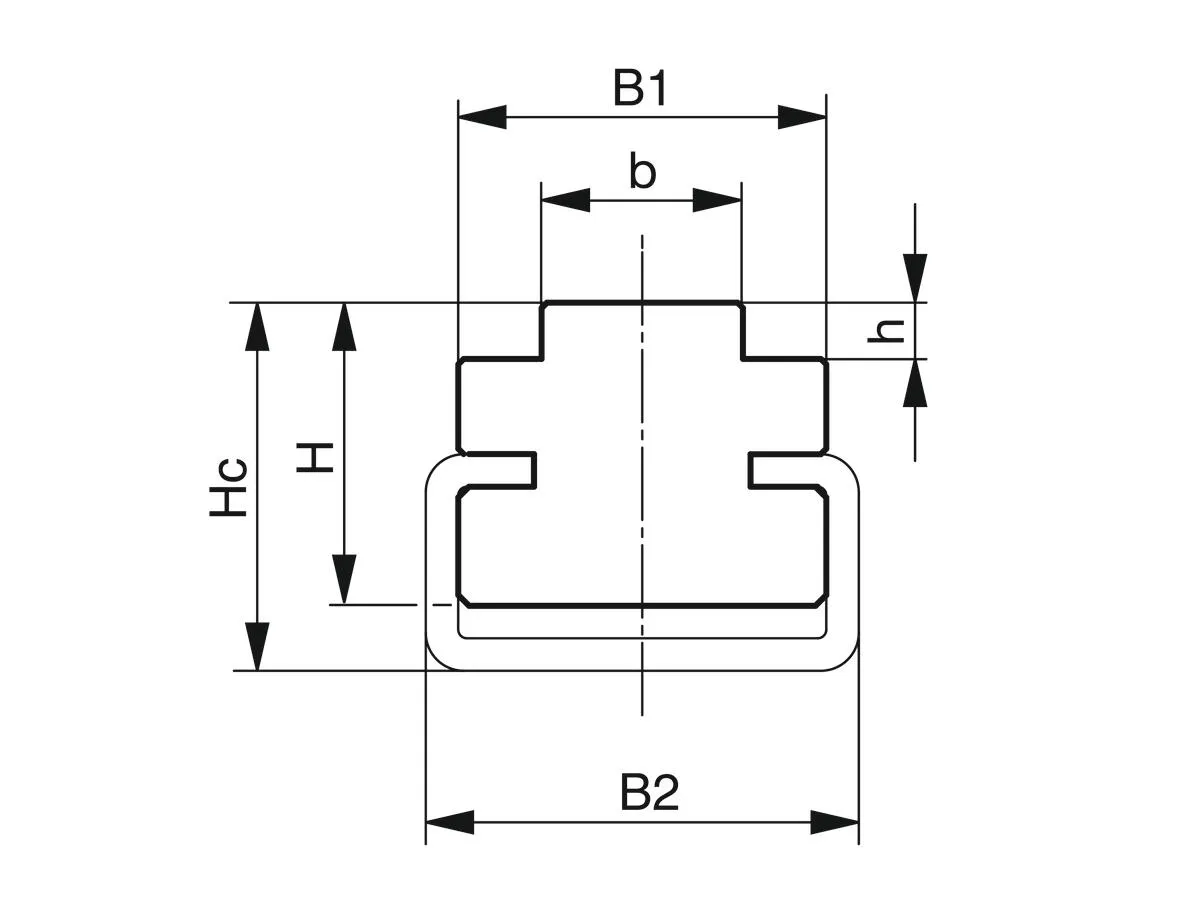

Roller chain guide Type CT
Compatible Chain
Material
B1 (mm)
H (mm)
Length (mm)
Width B2 (mm)
quick_reorder Ready to ship in: 6-7 working days
Show prices & order or request a quote?
Log in now to order directly or secure individual offers.
Product number
221260005
CAD
Show in 3D
The chain guide rail for simplex chains is made from our Original S® green or our recycled material S® NewCycle® green, which are characterized by precise tolerances in the plastic profile cross-section, as well as optimal performance and durability. They have been specially developed for applications where longevity is crucial.
Reliable: The guide rail is in stock as standard and quickly available.
Customizable: Upon request, we offer intermediate dimensions and alternative materials.
You can find suitable steel C profiles at the bottom of this page.
| Construction type | american |
| weight (kg) | 0.61 |
| Width b (mm) | 14.8 |
| Height h (mm) | 4.7 |
| Suitable C-profile type | C5 |
| Hc (mm) | 20.0 |

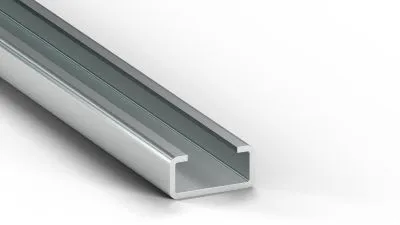

Steel C5 profile, galvanised – 3.048 m
Optimal partner for receiving plastic sliding guides

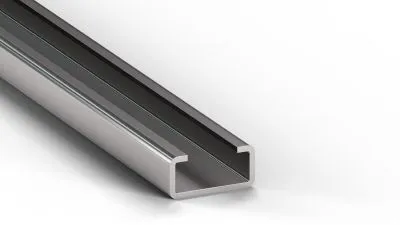

Stainless Steel C5 profile – 3.048 m
Optimal partner for receiving plastic sliding guides
