Note: The product shown is for illustration purposes only.
Product number
221310001
CAD
Show in 3D

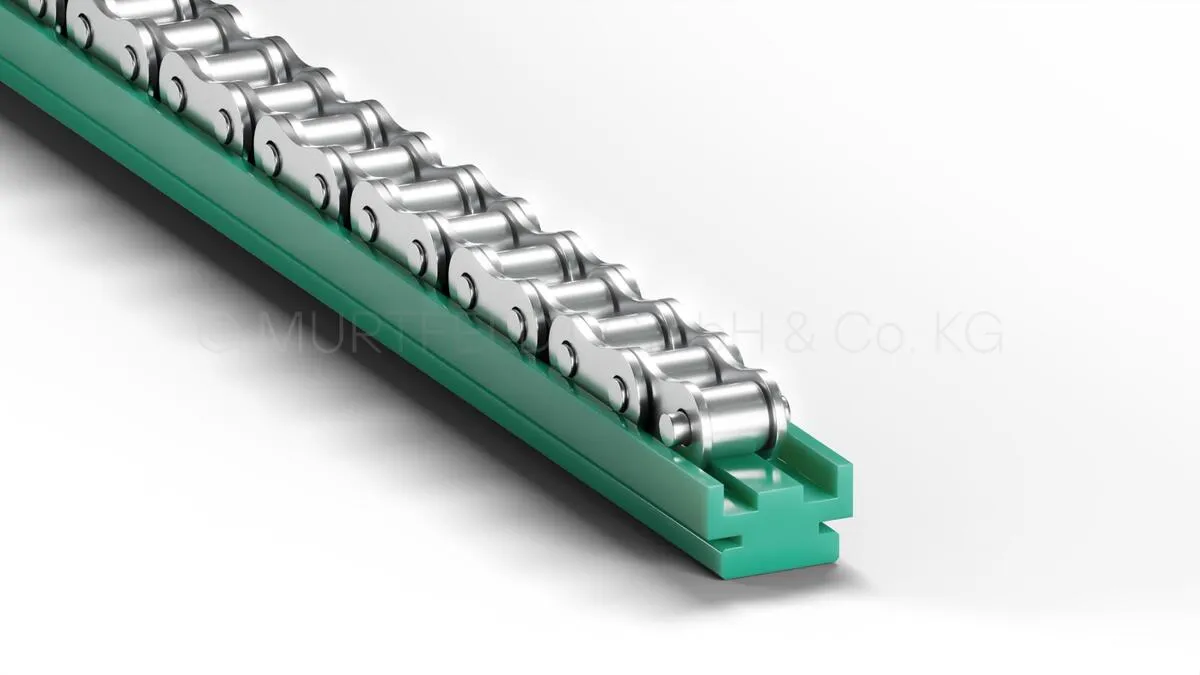

With our Type TS guide rail made from Original "S"® green® or our recycled material "S" newCycle® green, stability meets wear resistance thanks to lateral guide supports. The further development of the Type T guide rail ensures additional guidance and allows for easy integration into existing systems.
Fast: Our guide rails are available in standard lengths from stock and have a short delivery time.
Flexible: We also offer intermediate dimensions and other plastics tailored to your requirements.
You can find suitable steel C profiles at the bottom of this page.

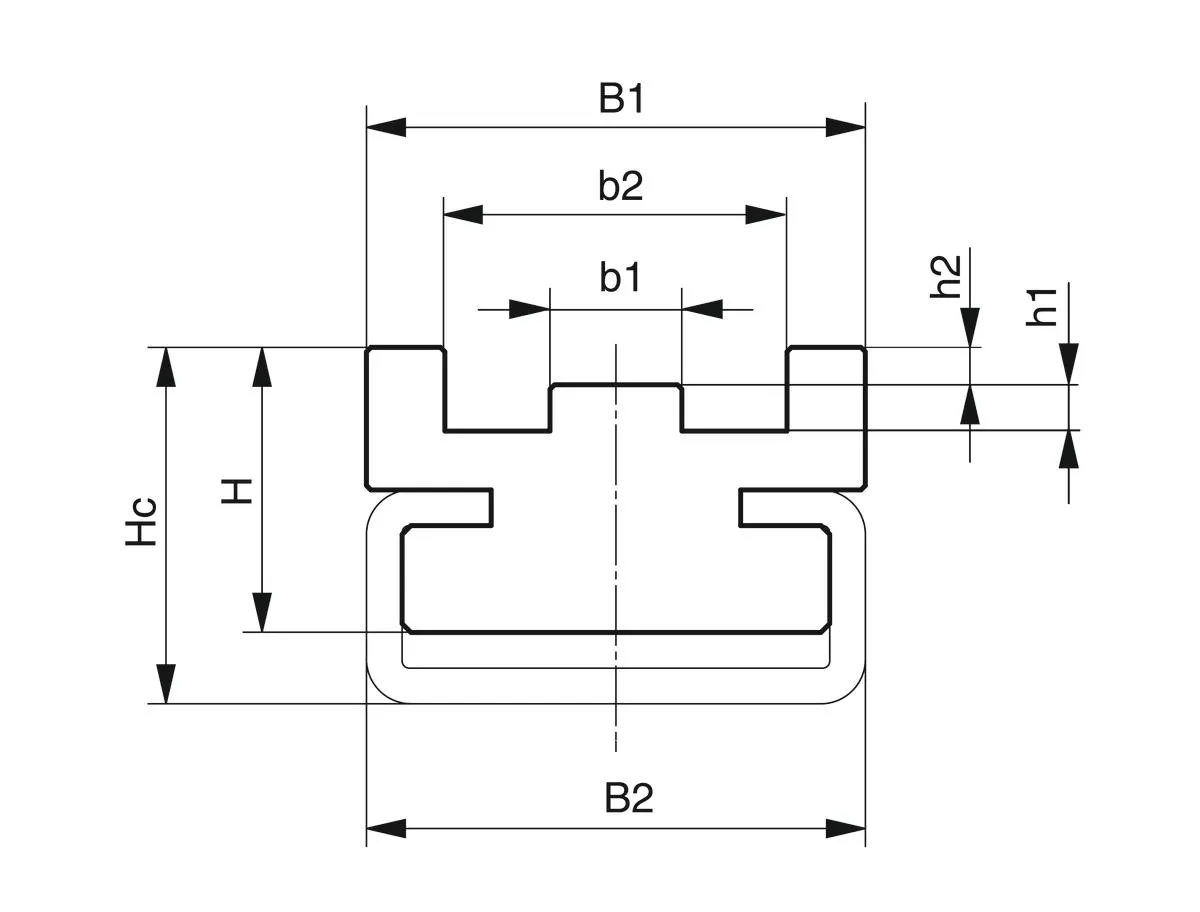

| Construction type | european |
| B1 (mm) | 20.0 |
| H (mm) | 14.0 |
| B2 (mm) | 20.0 |
| weight (kg) | 0.4 |
| b1 (mm) | 3.8 |
| h1 (mm) | 1.5 |
| b2 (mm) | 13.0 |
| h2 (mm) | 1.1 |
| Suitable C-profile type | C3 |
| Hc (mm) | 17.0 |
Roller chain guide Type CTS
Compatible Chain
Material
Length (mm)
quick_reorder Ready to ship in: 1 working day
Show prices & order or request a quote?
Log in now to order directly or secure individual offers.
Product number
221310001
CAD
Show in 3D
With our Type TS guide rail made from Original "S"® green® or our recycled material "S" newCycle® green, stability meets wear resistance thanks to lateral guide supports. The further development of the Type T guide rail ensures additional guidance and allows for easy integration into existing systems.
Fast: Our guide rails are available in standard lengths from stock and have a short delivery time.
Flexible: We also offer intermediate dimensions and other plastics tailored to your requirements.
You can find suitable steel C profiles at the bottom of this page.
| Construction type | european |
| B1 (mm) | 20.0 |
| H (mm) | 14.0 |
| B2 (mm) | 20.0 |
| weight (kg) | 0.4 |
| b1 (mm) | 3.8 |
| h1 (mm) | 1.5 |
| b2 (mm) | 13.0 |
| h2 (mm) | 1.1 |
| Suitable C-profile type | C3 |
| Hc (mm) | 17.0 |

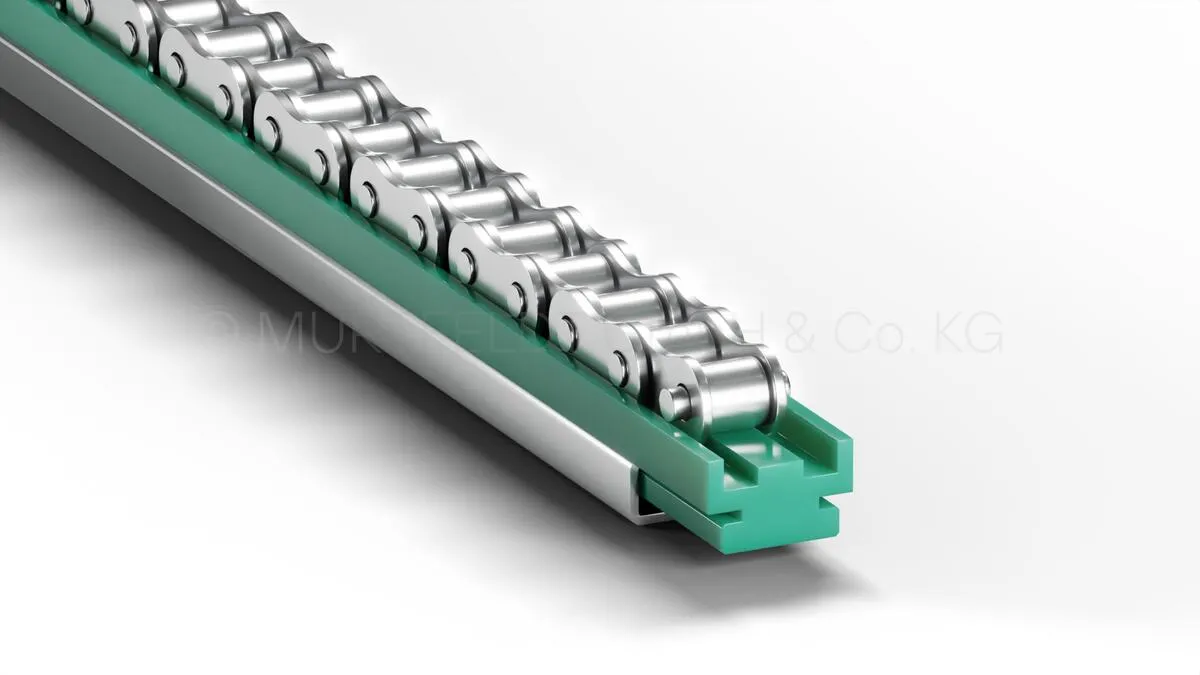

Steel C3 profile
Optimal partner for receiving plastic sliding guides
Stainless Steel C3 profile, 2m
Optimal partner for receiving plastic sliding guides
Steel C3 profile, galvanised, 3m
Optimal partner for receiving plastic sliding guides
Stainless Steel C3 profile, 3m
Optimal partner for receiving plastic sliding guides
Steel C3 profile, galvanised, 6m
Optimal partner for receiving plastic sliding guides
Stainless Steel C3 profile, 6m
Optimal partner for receiving plastic sliding guides
Steel C3 profile, bare, 6m
Optimal partner for receiving plastic sliding guides
